reel die cutting machine

reel die cutting machine
reel die cutting machine
Product Code : 10
Brand Name : BRIGHT EVER
Product Description

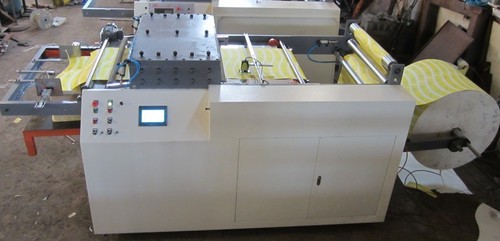

Reel die cutting machine

Automatic Die Cutting Machine

1.This kind punching machine is designed by us and we have patient for it, small size, competitive price, fully automatically working.

2. Auto-loading max.dia 1500mm paper roller

3. Auto-feeding paper by servo motor

4.Photoelectric sensor location , make sure high cutting precision for printed or blank paper roller .

5. adopt flatten wooden cutting blade ,saving cost .

6.Stacking cutted paper

Advantage

1.Remove the waste in the hole of the product automatically, such as envelope with window, food packing box.
2.Blow away the scraps on both sides of the product.
3.Load and feed material automatic by photoelectric.
4.Suitable for printed or blank roller paper (any weight paper, single or double PE coated).
5.Die cutting nearly no waste, saving material.
6.Adopt flat wooden blade, side way changing blade.

Model
BE-P900
BE-P1200
Suitable paper
All weight paper
All weight paper
Max. paper roller
1500 mm
1500 mm
Max. punching speed
120 times / minute
120 times/minute
Max. punching size
890 x 490 mm
1190 x 490 mm
Dimension(mm)
4100 x 1600 x 1750
5000 x 1900 x 1750
Net weight
4000kg
 5000kg
