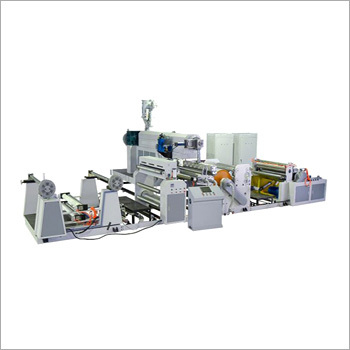

PE Coating Machine SJFM-1100-1600 Serial healthy environmental shower membrane machine and paper plastic composition unit (non-adhesive composition unit) which integrates winding, drying, surface process, composition, edge-cutting, adsorption degree with rewinding ate adopted with photo-electricity tracking, electric-flower process; line speed length of material digital display; full automatic metal tension, temperature-automatic control etc., advance technologies.
|
Model
|
SJFM-1100
|
SJFM-1300
|
SJFM-1600
|
SJFM-1800
|
|
Mould length
|
1200mm
|
1400mm
|
1800mm
|
2000mm
|
|
Product width
|
500-1000
|
600-1250
|
800-1500
|
900-1700
|
|
Max. speed (meter/min)
|
80-110
|
80-110
|
60-110
|
60-110
|
|
Thickness of film (mm)
|
0.01-0.03
|
0.01-0.03
|
0.01-0.03
|
0.01-0.03
|
|
Power
|
70kw
|
80kw
|
100kw
|
130kw
|
|
Cooling Roller Diameter
|
510mm
|
510mm
|
510mm
|
510mm
|
|
Max. dia un/rewind roller
|
1200mm
|
1200mm
|
1200mm
|
1200mm
|
|
