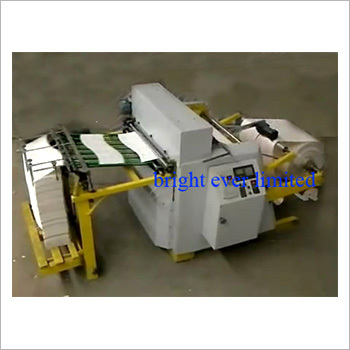

Automatic Die Cutting Machine
- This kind punching machine is designed by us and we have patient for it, small size, competitive price, fully automaticlly working.
- Auto-loading paper roller
- Auto-feeding paper by servo motor
- Photoelectric location
- Punching
- Stacking cutted paper
Advantage
- Remove the waste in the hole of the product automatically, such as envelope with window, food packing box.
- Blow away the scraps on both sides of the product.
- Load and feed material automatic by photoelectric.
- Suitable for printed or blank roller paper (any weight paper, single or double PE coated).
- Die cutting nearly no waste, saving material.
- Adopt flat die cutting mould and knife plate is very cheap.
|
Model
|
BE-P900
|
BE-P1100
|
|
Suitable paper
|
All weight paper
|
All weight paper
|
|
Max. paper roller
|
1500 mm
|
1500 mm
|
|
Max. punching speed
|
300 times / minute
|
300 times/minute
|
|
Max. punching size
|
900 x 600 mm
|
1100 x 600 mm
|
|
Dimension
|
2000 x 1750 x 1600
|
2500 x 1800 x 1600
|
|
